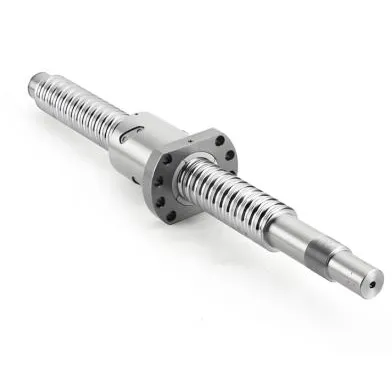

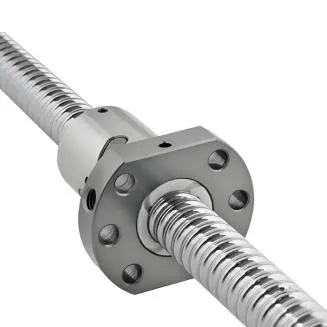

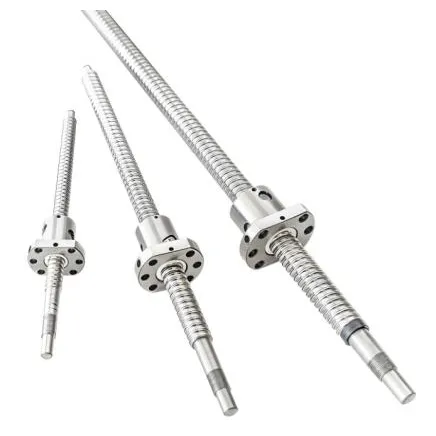

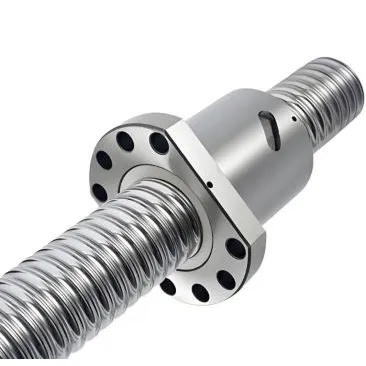

Strong Dust Proof Type SFU Ball Screw C3 C5 High Precision SFU1605 SFU3208 Ball Screw Balls

1.Internal circulation design: saves space usage.

2.Low driving torque: only 1/3 of the sliding screw.

3.High precision : capable of ensuring high-precision transmission---C7,C5,C3

4.Micro feed: can be controlled at 0.1μm Within.

5.Seamless and high rigidity: suitable for working in places with limited operating space.

High transmission efficiency: The ball screw adopts rolling friction method, and the transmission efficiency can reach over 90%. High transmission efficiency means that under the same power, the ball screw can complete the work faster, improving production efficiency

High precision and repeatability: The positioning accuracy of ball screws can reach micrometer or even sub micrometer levels, with a repeatability accuracy of ± 0.01mm. This high-precision feature makes ball screws perform well in situations that require precise control, such as tool feed in CNC machining centers, robot joint lifting, etc

Long lifespan and low maintenance: Ball screws have minimal rolling friction and wear, with a lifespan typically reaching tens of thousands of hours, and a long lubrication cycle . Compared to traditional sliding screws, ball screws have lower maintenance costs

High load-bearing capacity: The ball screw adopts a point contact design, which disperses stress and has a dynamic load capacity 3-5 times higher than the trapezoidal screw. It can withstand radial and axial composite loads and is suitable for high load applications

Low noise and smoothness: The rolling friction noise is less than 60dB, and there is no crawling phenomenon during movement. It is suitable for use in environments that require low noise and stable operation, such as medical equipment and clean rooms

Suitable for applications requiring high-speed motion and high precision.

They are particularly suitable for machines with small internal spaces, general tool machines, industrial machinery, automation machinery and other equipment.

In demanding industrial environments, machine components must endure harsh conditions such as high dust levels, metal particles, wood chips, abrasive powders, and continuous operational stress. Strong dust-proof SFU ball screws, including popular models such as SFU1605 and SFU3208, are specifically engineered to maintain reliable performance in environments where standard ball screws would quickly wear out. Their enhanced sealing capability, robust construction, and optimized lubrication retention make them ideal for CNC machinery, heavy-duty automation systems, woodworking equipment, and industrial metal fabrication.

Enhanced Dust Protection and Sealing Structure

The most significant benefit of dust-proof SFU ball screws is the reinforced sealing structure designed to prevent contaminants from entering the ball nut. Dust, chips, or abrasive particles can cause severe internal wear, increase friction, and lead to premature failure. Strong dust-proof ball screws use high-quality rubber seals or metal scrapers that effectively block debris while allowing smooth rotational movement. This protective design ensures stable performance even in environments with continuous particle exposure.

Extended Service Life

A dust-proof design significantly extends the service life of the ball screw assembly. When contaminants enter the ball nut, they can damage the ball bearings, degrade the raceway surface, and reduce lubrication effectiveness. By preventing contamination, dust-proof SFU ball screws maintain optimal lubrication and minimize internal friction. This leads to longer component lifespan, fewer replacements, and reduced downtime, which is critical in production facilities operating at high workloads.

Stable High-Precision Motion

Unlike conventional ball screws that may experience accuracy loss due to contamination, dust-proof SFU models maintain precision for a longer period. The smooth rolling motion inside the ball nut remains unaffected because dust cannot interfere with the ball circulation path. This ensures consistent linear accuracy and positioning reliability, which is especially important for CNC routers, milling machines, injection molding machines, and automation robots that demand repeatable high precision.

Reduced Maintenance Requirements

Strong dust-proof SFU ball screws help reduce the frequency of cleaning, lubrication, and maintenance inspections. With fewer contaminants entering the system, there is less risk of abrasive wear or lubricant contamination. This not only lowers operating costs but also helps keep machines running for extended periods without interruption. Many factories that operate in three-shift, high-duty cycle environments rely on dust-proof ball screws to maintain stable productivity.

Ideal for Harsh or High-Contamination Environments

Industries such as woodworking, metalworking, packaging, printing, textile manufacturing, and powder handling often generate substantial airborne debris. Dust-proof SFU ball screws outperform standard versions in these environments by offering dependable performance under challenging conditions. Whether operating in sawdust-heavy woodworking lines or metal chips–laden machining centers, the strong sealing design provides a reliable motion solution.

Improved Efficiency and Machine Performance

When a ball screw stays clean and well-lubricated, it reduces friction, improves transmission efficiency, and enables smoother linear movement. This results in lower energy consumption, better accuracy, and quieter machine operation. Combined with the structural strength of SFU series ball screws, models like SFU1605 and SFU3208 deliver excellent load capacity and efficient power transmission.

In summary, strong dust-proof SFU ball screws offer major benefits such as enhanced sealing, extended durability, reduced maintenance, and stable high-precision performance, making them an essential choice for harsh industrial environments.

Understanding the differences between C3 and C5 accuracy grades is critical for selecting the right SFU ball screw for your machine. The SFU series, including SFU1605 and SFU3208, is used widely in CNC machinery, automation systems, robotics, semiconductor equipment, and precision positioning modules. Accuracy grade directly affects the machine’s performance, repeatability, tolerance, and final product quality. C3 and C5 represent high-precision classifications, but they differ significantly in both performance and manufacturing.

Lead Accuracy and Manufacturing Method

The primary difference between C3 and C5 ball screws lies in the lead accuracy.

C3 accuracy: ±0.008 mm per 300 mm

C5 accuracy: ±0.018 mm per 300 mm

C3 ball screws offer extremely high precision, making them suitable for advanced machine tools, semiconductor equipment, precision measurement systems, and applications requiring micron-level positioning. C5 ball screws, although slightly less accurate, still offer excellent performance and are widely used in CNC routers, milling machines, 3D printers, and general industrial automation.

C3 ball screws are typically precision ground, which ensures highly accurate lead control, smooth raceways, and minimal vibration. C5 ball screws may be ground or high-precision rolled, depending on the manufacturer, which makes them more cost-effective while still delivering reliable performance.

Repeatability and Motion Quality

C3 ball screws provide superior repeatability due to tighter tolerances and extremely uniform rolling contact. This level of precision is ideal for machines requiring stable motion control at high speeds, such as high-end CNC machining centers. C5 ball screws offer very good repeatability for most industrial applications, though not as precise as C3. For users balancing cost and performance, C5 remains a popular and practical choice.

Vibration, Smoothness, and Noise Level

Because C3 ball screws are ground to finer tolerances, they generally produce smoother motion, less vibration, and lower noise. This results in cleaner surface finishes when machining and improved performance in high-resolution positioning systems. C5 screws provide smooth motion as well, but may not match the ultra-low vibration characteristics of C3 screws.

Cost Considerations

C3 ball screws are more expensive due to the grinding process, strict inspection standards, and higher-quality internal components. They are recommended for demanding precision applications. C5 ball screws offer an excellent balance of accuracy and cost, making them suitable for most automation and medium-precision CNC systems.

Which Accuracy Grade Should You Choose?

1、Choose C3 if your application requires:

Micron-level precision

High-speed machining

Ultra-smooth motion

2、High-end CNC or semiconductor manufacturing

Choose C5 if your application requires:

High accuracy with reasonable cost

General CNC machining

Automation equipment

Industrial robotics and positioning modules

In summary, C3 provides the highest precision available, while C5 offers excellent performance at a more cost-effective price. Choosing between the two depends on your machine’s performance requirements and budget.
