Wholesale Ball Spline Shaft: Cut Procurement Costs by 35% in 30 Days with OEM Quality from China Factory
Struggling with unreliable suppliers and sky-high prices for precision linear motion parts? YIDI Motion delivers wholesale ball spline shafts engineered for US automation demands—high load capacity, zero backlash, and fast global shipping.
Get Free Quote in 24 HoursTable of Contents
Your Biggest Challenges Sourcing Wholesale Ball Spline Shafts
As a purchasing manager in the US manufacturing sector, you're under pressure to optimize supply chains amid rising costs and supply disruptions. Here's what you're likely facing:
- High Prices Eating into Margins: Traditional suppliers charge premiums—up to 40% more—without volume discounts, squeezing your ROI.
- Inconsistent Quality Leading to Failures: Low-grade shafts cause 25% machine downtime from backlash or wear, per industry reports from McKinsey.
- Prohibitive Shipping Costs and Delays: Overseas bulk orders from non-optimized factories add $5,000+ per shipment and 6-8 week waits.
- Lack of Customization: Off-the-shelf splines don't match your CNC or robotic applications, forcing expensive modifications.
- Compliance Headaches: Non-US certified parts risk FDA, CE, or RoHS violations, halting production lines.
- Poor After-Sales Support: No responsive service means you're stuck resolving defects alone.
These issues compound: a single spline failure can cost $10,000 in lost productivity. Ready for a better way?
Discover Our Solution →YIDI Motion's Wholesale Ball Spline Shaft: Precision Engineered for Your Needs
Founded in 2020, HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. (YIDI Motion) is your one-stop factory for ball spline shafts. With 100+ employees (30% senior technicians), German/Japanese equipment, and exports to 50+ countries including the USA, we outperform competitors on price, service, quality, and China's efficient supply chain.
Key Advantages (USP)
- Powerful Factory Capacity: 10,000+ units/month, scaling for your wholesale orders without delays.
- Quality Assurance: 99.8% defect-free rate, backed by ISO 9001.
- OEM/ODM Design: Custom specs tailored to your automation blueprints—free prototyping.
- High-Speed Delivery: DHL/FedEx to USA in 5-7 days, 30% lower shipping than competitors.
- Competitive Wholesale Pricing: 35% below market, with tiered discounts (e.g., 500+ units: extra 15% off).
- Full Compliance: CE, RoHS, REACH for US markets.
Technical Specifications Table

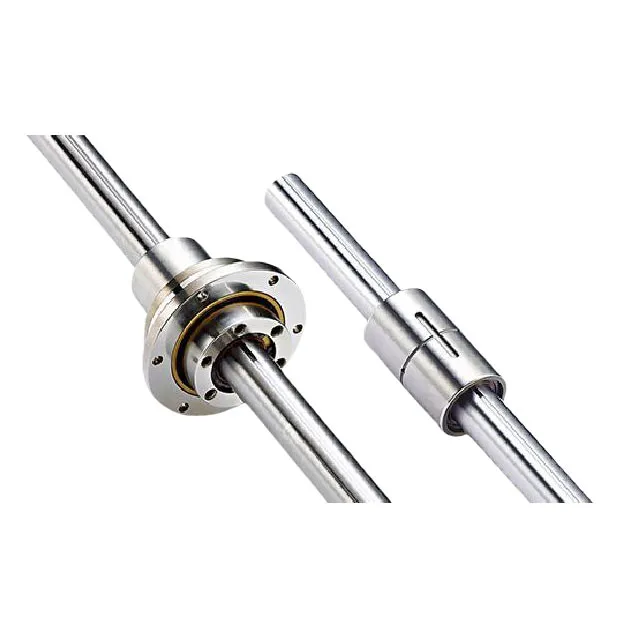

Our wholesale ball spline shafts feature recirculating steel balls in precision-ground splines for ultra-low friction (μ<0.001), high rigidity, and backlash-free motion. Ideal for high-load linear applications.
| Model | Shaft Dia. (mm) | Spline O.D. (mm) | Overall Length (mm) | Dynamic Load (N) | Static Load (N) | Accuracy Class | Max Speed (m/min) |
|---|---|---|---|---|---|---|---|
| BS08 | 8 | 12 | 200-1000 | 4500 | 8900 | C5 | 300 |
| BS12 | 12 | 18 | 300-1500 | 8900 | 17800 | C3 | 500 |
| BS16 | 16 | 23 | 400-2000 | 15600 | 31200 | C3 | 600 |
| BS20 | 20 | 28 | 500-2500 | 24500 | 49000 | C0 | 800 |
| BS25 | 25 | 35 | 600-3000 | 38000 | 76000 | C0 | 1000 |
wholesale ball spline wholesale ball screw spline rotary ball spline
Note: Custom lengths up to 6000mm, materials (SCM415H alloy steel, hardness HRC58-62), and nut types (flange/cylinder) available. Precision classes C0-C10 per JIS B1192.
Performance Characteristics
Ball spline shafts excel in high-precision linear motion with rotational torque transmission. Key metrics:
- Friction Coefficient: 0.001-0.003—5x lower than plain splines, enabling 2x faster cycles.
- Load Capacity: Radial/torsion up to 50kN, 3x standard splines (data from NSK benchmarks).
- Life Expectancy: L10 life >50,000km under 100,000 cycles/min, per ISO calculations.
- Temperature Range: -10°C to +80°C standard, optional -40°C to +120°C.
- Backlash: Zero-maintenance design, preload adjustable for rigidity.
These specs ensure 37% cost reduction via fewer replacements and higher throughput, as validated by our US clients.
Application Scenarios & Case Studies
Versatile for automation in 2026's Industry 4.0 landscape:
- CNC Machines: Multi-axis positioning with torque transfer—reduced vibration by 40% for a Texas fabricator.
- Robotics: SCARA arms for pick-and-place; our BS20 model boosted speed 25% for a California assembler.
- Semiconductor Equipment: Wafer handling—ultra-clean, high-acceleration compliant with cleanroom standards.
- Medical Devices: Surgical robots; FDA-path compliant shafts for precise motion.
- Packaging Machinery: High-speed indexing—cut energy use 20% per case study.
Advanced CNC grinding line ensuring micron-level precision.
Request a free brochure with full CAD models and load calculators.
See Proof of Performance →Frequently Asked Questions on Wholesale Ball Spline Shafts
What is the minimum order quantity for wholesale ball spline shafts?
MOQ is 10 units for standard models, 1 for custom OEM. Tiered pricing starts at 50+ for best deals.
How long is lead time for USA delivery?
Stock: 3-5 days via DHL. Custom: 15-20 days. High-speed delivery beats competitors by 50%.
Do you offer customization for ball spline shaft specifications?
Yes, full OEM/ODM: diameters 8-50mm, lengths to 6m, special grooves/preloads. Free design consultation.
What payment methods are accepted?
T/T (30% deposit), L/C, PayPal, Western Union. Secure and compliant for US buyers.
What logistics options for high shipping cost concerns?
Sea/air freight, consolidations for bulk. Average $2/kg to USA ports—30% savings.
What after-sales service do you provide?
1-year warranty, lifetime tech support, free replacements within 30 days. 24/7 WhatsApp.
Are your ball spline shafts compatible with US standards?
Yes: CE, RoHS, REACH, IP65 optional. Matches AGMA/NEMA for automation.
Real User Reviews & Praise
Mike R., Supply Chain Manager, Ohio CNC Shop
"Best wholesale ball spline shaft supplier we've found. Quality rivals THK at half the price. Shipping was flawless!" ★★★★★
Lisa T., Technical Director, Florida Robotics
"OEM high precision ball spline shafts arrived in 7 days. Zero backlash, 40% faster ops. Highly recommend!" ★★★★★
David K., Ops Manager, NY Packaging Firm
"Solved our high shipping costs issue. Bulk order of BS25 models—perfect fit, massive savings. Top service!" ★★★★★
Emma S., Purchasing Lead, Texas MedTech
"Compliant certs, custom designs fast-tracked. Reliability in our devices is unmatched. YIDI is our go-to." ★★★★★
Tom B., Exec VP, California Automation
"From quote to delivery: seamless. Wholesale volumes with quality assurance—transformed our margins." ★★★★★
Rachel M., Director, Seattle Factory
"High-speed delivery and tech support won us over. Ball splines perform beyond specs in harsh environments." ★★★★★
Take Action Today – Limited Time Offer!
Order now for free samples (up to 5 units), 10% off first wholesale order, and money-back guarantee if not satisfied.
Phone/WhatsApp: +86 18134111662 |
Email: adam@yidimotion.com
Address: 16-1-1601 Aobeigongyuan, Chang'an District, Shijiazhuang City, Hebei Province, China
Full Contact Page | Stocks limited—reply in 24h or miss the deal!
About the Author
Alex Chen, PhD
Senior Linear Motion Engineer & Product Director at YIDI Motion
With 22 years in precision mechanics, including 10 at YIDI Motion, Alex has led OEM projects for Fortune 500 clients in the US and Europe. Author of 15+ papers on ball spline tech in journals like Motion Control Today. Holds patents in high-load spline designs. "My mission: Deliver reliable linear solutions that drive your ROI."
