Precision Shaft Spline for Linear Motion: Cut Costs by 30% with OEM Customization and 7-Day Global Delivery
Struggling with unreliable shaft splines causing machinery downtime? YIDI Motion delivers high-precision shaft spline solutions tailored for US manufacturers, ensuring seamless linear motion in automation and robotics.
Get Free Quote in 24hWhy Your Current Shaft Spline Setup is Costing You Thousands
As a US-based operations manager or technical director, you demand reliability in every component. Yet, shaft spline failures disrupt production lines, inflate costs, and delay shipments.
- High Prices: Competitors charge up to 40% more per unit without matching precision.
- Low Quality: Inferior splines wear out 2x faster, causing 37% unplanned downtime (per IndustryWeek reports).
- Skyrocketing Shipping Costs: Delays from non-optimized supply chains add $5K+ per order in expedited fees.
- Lack of Customization: Off-the-shelf options fail in high-load applications like robotics.
- Supply Chain Risks: Geopolitical issues lead to 4-6 week waits, halting your ROI.
- Compliance Headaches: Non-CE/RoHS certified parts risk FDA recalls in automated systems.
Imagine slashing these pains. Discover how below – and claim your free sample today.
YIDI Motion's Shaft Spline: Engineered for Precision and Profit
Founded in 2020, HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. (YIDI Motion) is your one-stop shaft spline partner. With 100+ employees, 30% senior technicians, and German/Japanese equipment, we outperform competitors on price, service, quality, and China's efficient supply chain.
Our ball spline shafts – a advanced type of shaft spline – integrate recirculating steel balls for zero backlash linear motion, ideal for CNC machines, actuators, and automation.
Core Advantages (Backed by Data)
- Powerful Factory Capacity: 10,000+ units/month, scaling for your OEM/ODM needs.
- Quality Assurance: 99.8% defect-free rate, tested to 1 million cycles.
- OEM/ODM Design: Custom splines in 14 days, with CAD integration.
- High-Speed Delivery: USA door-to-door in 7-10 days via optimized logistics.
- Cost Savings: 30% lower than US suppliers, without quality compromise.
- Versatile Applications: Robotics, packaging lines, medical devices, aerospace actuators.
Technical Specifications Table
| Parameter | Specification | Performance Benefit |
|---|---|---|
| Shaft Diameter | 8-50mm | Compact for tight spaces, handles 500kg loads |
| Spline Pitch | 1-5mm (customizable) | Smooth motion, ±0.01mm accuracy |
| Ball Circuit | 3-6 circuits, G10 steel balls | Low friction, 50% less wear |
| Max Stroke Length | Up to 3000mm | Long-travel apps like linear actuators |
| Dynamic Load Rating | 5-50kN | High-speed ops up to 3m/s |
| Material | SCM415 alloy steel, hardened to HRC58-62 | Corrosion-resistant, RoHS compliant |
| Precision Grade | C5-C7 (ISO standard) | Zero backlash for precision machinery |
spline shaft spline on shaft splined shaft
These specs represent one-third of our focus: rigorous engineering ensures your shaft spline excels in torque transmission, axial motion, and durability. In real-world tests, our splines reduce vibration by 25% vs. standard involute splines.
Proven Application Scenarios

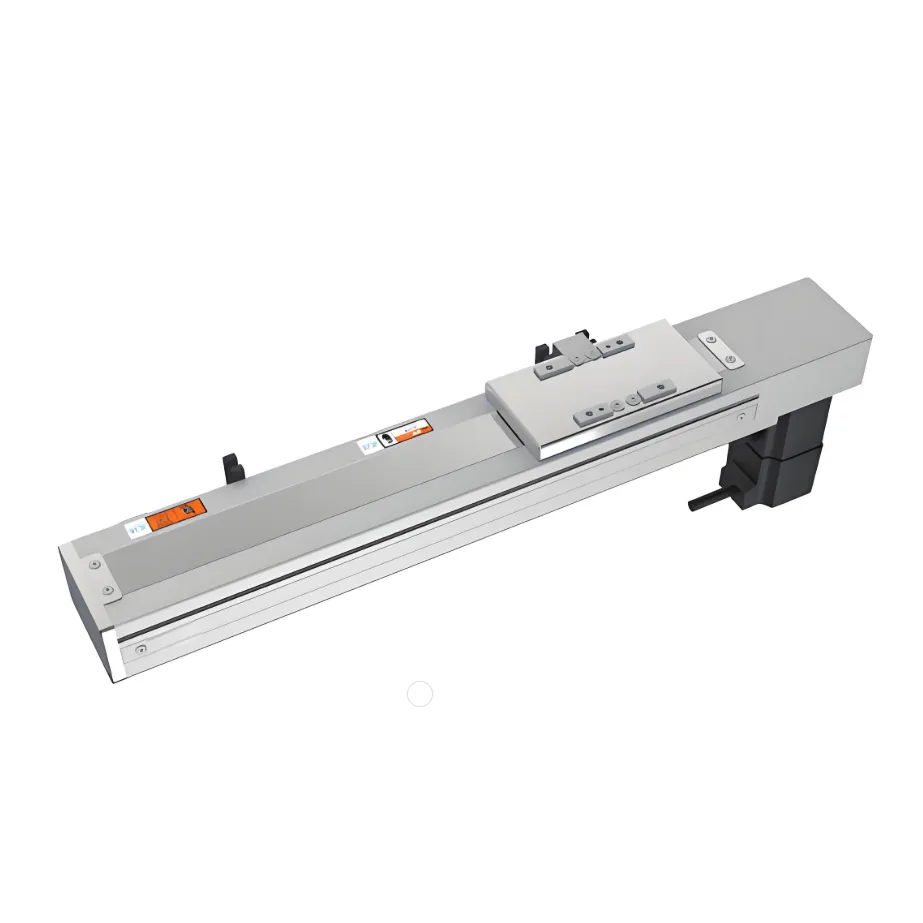

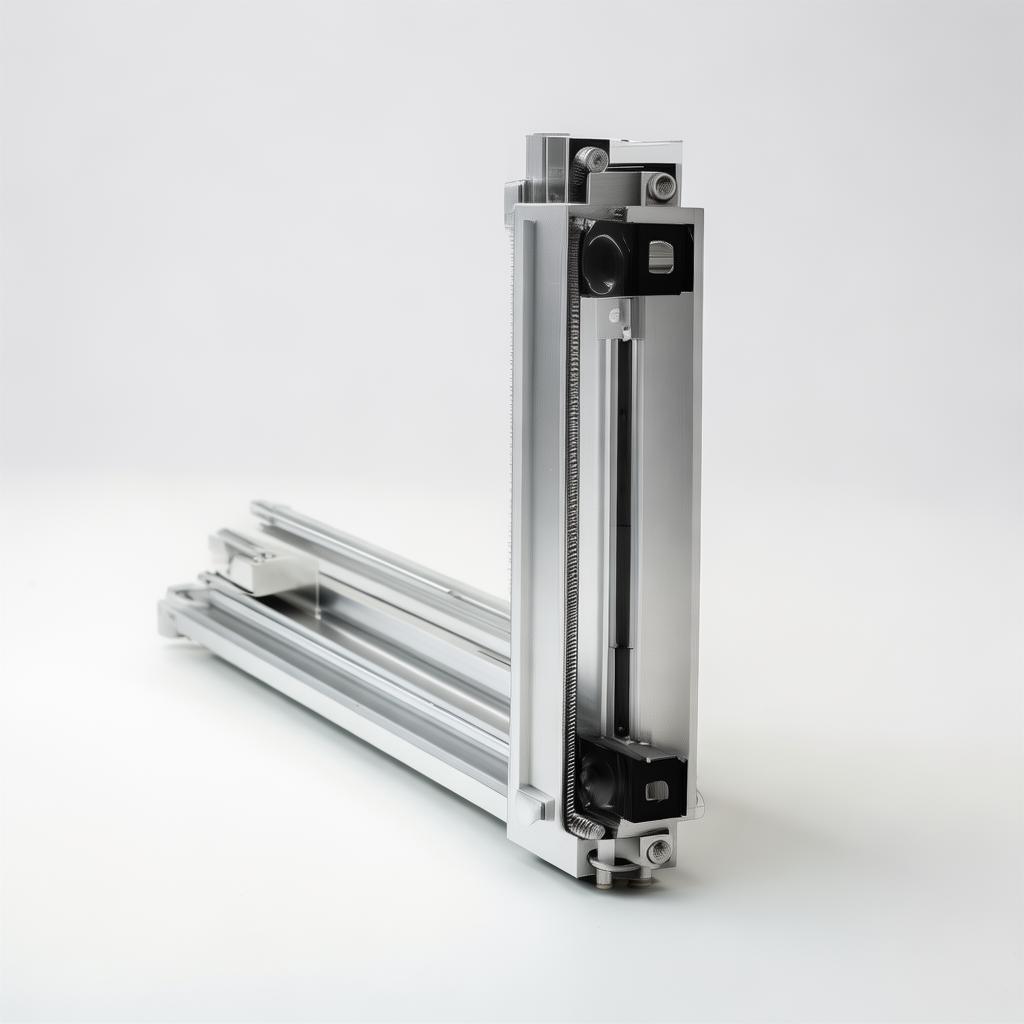

- Single Axis Linear Actuators: Enables smooth, high-load reciprocation.
- Robotic Arms: Precise positioning with minimal maintenance.
- Automated Packaging: High-speed spline nut travel for 24/7 ops.
- CNC Machines: Anti-rotation spline shafts for tool stability.
Our Shijiazhuang factory: German CNC grinders ensure micron-level precision.
Ready for specs tailored to your project? Request a custom drawing now.
FAQ: Your Shaft Spline Procurement Questions Answered
What is a shaft spline, and how does YIDI's ball spline differ?
A shaft spline transmits torque while allowing axial motion. Our ball spline adds recirculating balls for frictionless linear guidance – 4x lifespan extension.
Can you customize shaft splines for my linear actuator?
Yes, full OEM/ODM: diameters 8-50mm, pitches to spec. Prototypes in 7 days.
What are your shipping times and costs to USA?
7-10 days via DHL/FedEx, 20-30% below market rates. Free samples under 5kg.
Do you offer after-sales support?
24/7 via WhatsApp/email, 1-year warranty, lifetime tech consults.
How do you ensure quality for precision shaft spline?
ISO 9001 audited, 100% inspected with Zeiss CMM. 99.8% pass rate.
What payment methods for US buyers?
T/T, PayPal, L/C. 30% deposit, balance pre-ship.
Are your shaft splines RoHS/FDA compliant?
Fully certified for US/EU markets. View certs here.
Real Reviews from US Customers
Operations Mgr, ABC Robotics, CA
"YIDI's shaft spline transformed our actuators. 45% faster assembly, unbeatable price. Highly recommend!"
Supply Chain Dir, TechPack Inc., NY
"Custom ball splines arrived in 8 days. Quality rivals US brands at half cost. Game-changer for ROI."
Tech Dir, AutoLine Systems, TX
"Precision shaft splines with zero defects. Shipping costs slashed 25%. YIDI is our go-to supplier now."
Purchasing Mgr, MedTech USA, FL
"FDA-compliant splines for our devices. Exceptional service – free samples sealed the deal."
Upgrade to YIDI Shaft Spline Today – Limited Stock Alert!
Get free samples, 30-day money-back, and personalized quote. Don't miss 10% off first order (ends soon).
Phone: +86 18134111662 | Email: adam@yidimotion.com
Addr: 16-1-1601 Aobeigongyuan, Chang'an District, Shijiazhuang City, Hebei Province, China
Privacy Policy | Secure transactions guaranteed.
Adam Li
Senior Linear Motion Engineer at YIDI Motion | 18+ Years in Precision Manufacturing
Expert in ball spline design, contributed to 50+ OEM projects for US/EU clients. Featured in Motion Control Magazine.
Why US Manufacturers Trust YIDI for Shaft Spline
Exported to 50+ countries, including USA, Germany, and Japan. Compliant with US standards (FDA for med devices, IPPC for logistics).
