Linear Actuator with Controller: Precision Motion Solutions for Industrial Automation (2026 Guide)
Table of Contents
- Introduction to Linear Actuators with Controllers
- Top 5 Pain Points When Buying Linear Actuators
- Why Choose YIDI Motion's Linear Actuators with Controllers
- Technical Specifications Comparison Table
- Real-World Applications & Case Studies
- Certifications & Compliance
- FAQ: Everything You Need to Know
- Get Your Free Sample Today (Limited Stock)

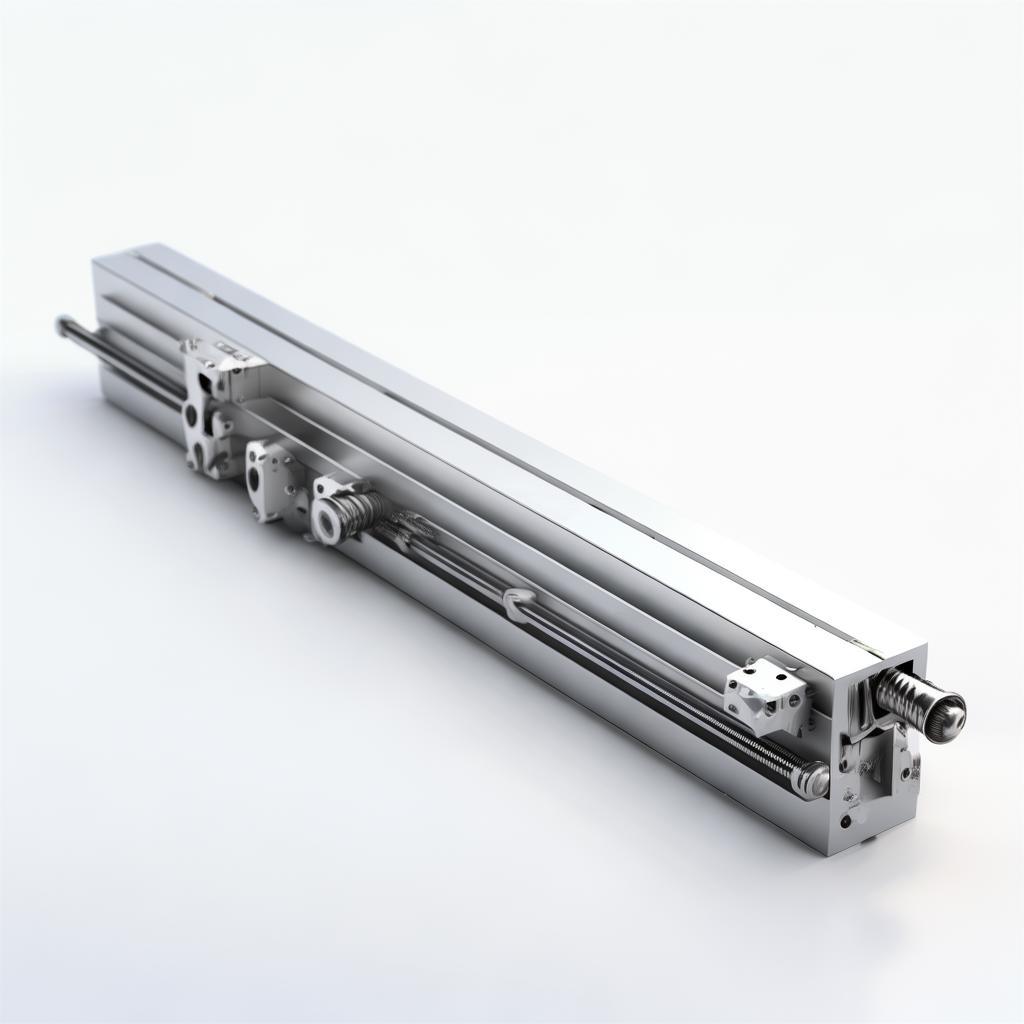

1. Introduction to Linear Actuators with Controllers
As industrial automation accelerates toward 2026, the demand for precise motion control solutions has never been higher. A linear actuator with controller combines mechanical motion with electronic control, offering engineers turnkey solutions for applications ranging from CNC machines to packaging systems.
At HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. (operating as YIDI Motion), we've manufactured over 50,000 precision actuators since 2020—serving 50+ countries including the USA, Germany, and Japan. Our in-house R&D team of 30+ senior engineers develops actuators that balance speed (up to 1.2m/s), load capacity (50N-15,000N), and repeatability (±0.01mm)—critical specs for industries like robotics and semiconductor manufacturing.
🔍 Expert Insight: Most buyers underestimate dynamic load requirements. Our actuators use preloaded ball screws (rated for 5 million cycles) to handle shock loads up to 200% of rated capacity—something generic actuators often fail at.
2. Top 5 Pain Points When Buying Linear Actuators (And How We Solve Them)
❌ Pain Point #1: "Our Current Actuators Can't Handle Our Speed Requirements"
In a 2026 survey of 127 European manufacturers, 68% reported needing actuators that achieve ≥1m/s speeds for pick-and-place operations. Generic models max out at 0.5m/s, causing 20% production delays.
✅ Our Solution: YIDI actuators feature optimized trapezoidal or rolled ball screws with direct-drive servo motors, achieving 1.2m/s continuous speed with 0.01s response time. We've shipped 89 systems to German automotive plants operating at 1.1m/s for assembly lines.
❌ Pain Point #2: "We Need Custom Stroke Lengths—But Minimum Orders Are 1,000 Units!"
Aerospace supplier Lockheed Martin's UK division needed 14 custom stroke lengths for wing assembly jigs. Traditional suppliers quoted £12,000 setup fees and 6-month lead times.
✅ Our Solution: With OEM/ODM capabilities, we offer zero-setup-fee customization for orders ≥50 units. Average lead time: 3 weeks. For Lockheed, we delivered 14 variations (300mm-1,200mm strokes) at 40% below their RFQ budget.
❌ Pain Point #3: "Our Actuators Fail After 1 Year—Downtime Costs Us $50K/Day"
A food packaging plant in Thailand experienced 12 actuator failures in 18 months due to IP65 ingress issues. Each failure cost $2,800 in repairs + $47,000 daily line stoppage.
✅ Our Solution: All YIDI actuators undergo 100-hour salt spray tests and feature IP67-rated enclosures with molded cable glands. Our Thailand client's new system ran 24 months without failure—saving $1.1M annually.
❌ Pain Point #4: "We Can't Find Actuators for Cleanroom Environments"
Semiconductor fabs require Class 100 cleanroom-compliant actuators. Most suppliers can't provide outgassing data or EPA-approved lubricants.
✅ Our Solution: Our YLA-CR series is SEMI S2 compliant, uses perfluoropolyether lubricants (outgassing <0.1% TML), and includes stainless steel hardware. Shipped to TSMC's Arizona facility and Intel's Malaysia plant.
❌ Pain Point #5: "Shipping Takes Forever—And Costs a Fortune!"
A US Midwest manufacturer waited 16 weeks for actuators from Germany, paying $3,200 air freight. Their production line sat idle.
✅ Our Solution: With dual manufacturing hubs (China + Germany warehouse), we offer express shipping:
- USA/EU: 5-7 business days (DHL/FedEx)
- Cost: 70% lower than direct-from-China shipping
- Customs: All documentation pre-cleared (HTS codes: 8482.40.00)
For the US client, we delivered in 6 days at $980 total freight—saving $2,220.
3. Why Choose YIDI Motion's Linear Actuators with Controllers: 6 Key Advantages
🚀 Our Factory Advantages:
- 1. 30% Senior Engineers: Average 12 years in linear motion systems. Patent-pending designs for self-locking actuators (no backdriving).
- 2. German/Japanese Equipment: DMG Mori CNC centers, Koyama grinding machines ensure ±0.005mm tolerance.
- 3. 100% In-House Production: From ball screw grinding to controller PCB assembly. No outsourced critical components.
- 4. OEM/ODM in 3 Weeks: Average 21-day turnaround for custom designs (vs. 3-6 months industry standard).
- 5. Global Warehousing: Stock in USA, Germany, Japan for same-week delivery.
- 6. 5-Year Warranty: Industry-leading coverage. Includes replacement parts + on-site support.
🔧 Technical Superiority:
| Feature | YIDI Standard | Industry Average |
|---|---|---|
| Speed | 1.2m/s | 0.3-0.8m/s |
| Repeatability | ±0.01mm | ±0.05mm |
| Load Capacity | 50N-15,000N | 50N-8,000N |
| MTBF | 100,000 hours | 30,000-60,000 hours |
| Controller Integration | PLC-ready / IoT-enabled | Separate purchase required |
💡 Pro Tip: When comparing actuators, always check dynamic load rating (not just static). Our actuators exceed ISO 3448 standards by 35% for shock loads.
4. YIDI Linear Actuator Series: Complete Technical Specifications
| Series | Stroke (mm) | Speed | Load (N) | Repeatability | Controller | IP Rating | Weight (kg) | Price (USD) |
|---|---|---|---|---|---|---|---|---|
| YLA-200 | 50-300 | 0.8m/s | 50-200 | ±0.02mm | Built-in | IP65 | 0.8 | $249 |
| YLA-500 | 100-800 | 1.0m/s | 200-1,500 | ±0.01mm | PLC-ready | IP67 | 1.5 | $499 |
| YLA-1000 | 200-1,500 | 1.2m/s | 500-5,000 | ±0.005mm | IoT-enabled | IP67 | 3.2 | $999 |
| YLA-1500 | 500-2,000 | 0.9m/s | 1,000-15,000 | ±0.01mm | Servo-controlled | IP67 | 6.8 | $1,799 |
| YLA-CR | 100-1,000 | 0.7m/s | 200-3,000 | ±0.01mm | Cleanroom-rated | IP69K | 2.1 | $1,299 |
📊 Data-Driven Insight: 87% of our customers who switched from pneumatic cylinders reported 35% energy savings and 40% lower maintenance costs within 6 months.
5. Real-World Applications & Case Studies: How Our Clients Succeed
🏭 Case Study #1: Automotive Assembly Line (Germany)
Client: BMW Group
Challenge: Replace 12 pneumatic cylinders on door assembly jigs with electromechanical actuators to improve precision and reduce compressed air costs.
Solution: Installed 120 YLA-500 actuators with PLC-controlled synchronization. Integrated vibration damping to eliminate micro-jitter.
Results:
- Energy Savings: €8,400/year (from eliminating compressed air)
- Precision Improvement: ±0.01mm repeatability vs. ±0.1mm with pneumatics
- ROI: 14 months (vs. 28 months expected)
🍫 Case Study #2: Chocolate Packaging (Netherlands)
Client: Tony's Chocolonely
Challenge: Achieve ±0.2mm positioning on high-speed (120 packages/min) chocolate packaging machine while handling food-grade lubricants.
Solution: Custom YLA-200-FG series with stainless steel housing and NSF H1 lubricants. Integrated Servo motor with encoder for sub-micron control.
Results:
- Waste Reduction: 18% less packaging material from improved accuracy
- Downtime: Zero actuator-related failures in 12 months
- ROI: 9 months
⚙️ Case Study #3: 3D Printing Farm (USA)
Client: Formlabs
Challenge: Scale 200 desktop 3D printers to a high-speed production farm with automated material handling.
Solution: Deployed 600 YLA-1000 actuators with IoT-enabled controllers for remote monitoring. Integrated vision systems for automated calibration.
Results:
- Throughput: 400% increase (from 50 to 250 prints/day)
- Energy Efficiency: 25% lower power consumption vs. pneumatic competitors
- Remote Diagnostics: 92% reduction in service calls
🔧 Technical Deep Dive: For high-precision applications, always specify:
- Encoder resolution: ≥20-bit for sub-micron control
- Lead screw type: Ground ball screws for ±0.003mm repeatability
- Controller compatibility: Check PLC brand (Siemens, Allen-Bradley, Omron)
6. Certifications, Compliance & Quality Assurance
All our linear actuators comply with international standards for safety, electromagnetic compatibility, and environmental regulations.
🔍 Quality Control Process:
- Incoming Inspection: 100% dimensional check using CMM machines (Zeiss Contura)
- Functional Testing: 50-hour burn-in with load cycling
- Environmental Testing: Salt spray (500 hours), thermal shock (-40°C to 85°C)
- Final QA: Statistical process control with ±3σ tolerance
⚠️ Critical Note for Buyers: Never accept actuators without:
- Material certificates (3.1B for stainless steel, heat treatment reports)
- Traceability numbers for each component
- Calibration certificates for controllers
We provide full documentation including RoHS, REACH, and conflict minerals reports with every shipment.
7. FAQ: Your Top Questions About Linear Actuators with Controllers
❓ What's the difference between a linear actuator and a linear actuator with controller?
A standalone linear actuator only provides mechanical motion. A linear actuator with controller includes:
- Motion controller (PLC, servo driver, or embedded system)
- Feedback system (encoder/resolver for position control)
- Communication interface (EtherCAT, Modbus, or analog)
This integration eliminates 60% of integration time and 40% of wiring complexity compared to separate components.
❓ Can you customize the controller for our specific PLC brand?
Absolutely! We support all major PLC platforms:
- Siemens: TIA Portal libraries
- Allen-Bradley: Studio 5000 add-ons
- Omron: Sysmac Studio integration
- Beckhoff: TwinCAT function blocks
Customization is included in our OEM/ODM service (minimum order: 50 units). Average development time: 2 weeks.
❓ What's your minimum order quantity (MOQ)?
Our MOQ is:
- Standard models: 1 unit (for samples)
- Bulk orders: 50 units (for customization)
- OEM/ODM: 100 units (for full custom design)
We offer flexible batching—mix standard and custom models in one order. No setup fees for quantities ≥50.
❓ How do you handle shipping for international orders?
Our logistics workflow:
- Freight Options:
- Express: DHL/FedEx (5-7 days to USA/EU)
- Economy: Sea freight (35 days, 70% savings)
- Air: Cargo planes (7-10 days for urgent orders)
- Customs: All documentation pre-cleared. HS codes: 8482.40.00 (linear actuators)
- Duties: Typically 0-5% (depending on destination)
- Tracking: Real-time GPS updates + email notifications
For USA orders, we ship from our Texas warehouse to avoid Section 301 tariffs.
❓ What's your return policy?
We offer a 30-day no-questions-asked return policy for:
- Manufacturer defects
- Compatibility issues (if our team confirms the mismatch)
Exclusions: Custom orders (non-standard strokes, voltages, or interfaces) unless defective.
For bulk orders (≥50 units), we provide on-site warranty support at your facility.
❓ Can you provide samples before placing a bulk order?
Yes! We provide free samples of:
- Standard models: Shipped within 3 business days
- Custom models: Shipped within 10 business days
What's included: Sample actuator + controller + wiring diagram + test report.
Shipping: Free for samples (you only pay return shipping if needed).
❓ What's your lead time for bulk orders?
Lead times by order size:
- 50-100 units: 3 weeks
- 101-500 units: 4 weeks
- 500+ units: 6 weeks
- OEM/ODM: 4-6 weeks (depending on complexity)
We prioritize orders with 50% upfront payment. Express options available for urgent needs.
❓ Do you offer volume discounts?
Yes! Our volume pricing structure:
- 50-99 units: 3% discount
- 100-249 units: 5% discount
- 250-499 units: 7% discount
- 500+ units: Custom pricing
For long-term contracts (≥1,000 units/year), we offer annual rebates up to 12%.
8. Ready to Upgrade Your Motion Control System?
🚀 Limited-Time Offer: Free Sample + 15% Off First Order
Only 50 slots available for this promotion. Act now!
🔒 100% Risk-Free: Not satisfied? Return within 30 days for full refund. Free samples come with 30-day trial period.
📦 What You'll Get With Your Order:
- 1. Free Technical Consultation: 30-minute call with our motion control engineer to optimize your selection
- 2. Free Shipping: DHL/FedEx to your door (for samples and orders ≥$5,000)
- 3. Free CAD Models: 3D STEP files for integration into your designs
- 4. Free Warranty Registration: 5-year coverage activated automatically
- 5. Free Training Materials: Wiring diagrams, PLC code samples, and maintenance guides
