What Is a Ball Screw and How Does It Work?

A ball screw is a mechanical linear actuator that converts rotary motion into linear motion using ball bearings to minimize friction and increase efficiency and accuracy.

What Types of Ball Screws Do You Offer?

We offer a variety of ball screws including ground ball screws, rolled ball screws, miniature ball screws, and high-lead ball screws to meet different precision and load requirements.

How Do I Choose the Right Ball Screw for My Application?

Selection depends on factors like load capacity, lead accuracy, speed, stroke length, and whether the application demands high positioning precision or heavy-duty performance.

What Is the Difference Between Ground and Rolled Ball Screws?

Ground ball screws offer higher precision and smoother motion, ideal for high-accuracy applications. Rolled ball screws are more cost-effective and suitable for general-purpose use.

What Maintenance Is Required for a Ball Screw?

Regular lubrication is essential. Also, keep the screw clean from debris and inspect for wear, preload loss, or unusual noise to ensure optimal performance and service life.

Premium Recirculating Ball Linear Guide for High-Precision Automation – OEM Supplier with Fast USA Delivery

Struggling with unreliable linear motion components causing 25% downtime in your CNC or robotic systems? YIDI Motion delivers precision recirculating ball linear guides engineered for US manufacturers, ensuring smooth, high-load operations.

Get Free Quote & Sample in 24 Hours

The Hidden Costs of Inferior Linear Guides in Your Operations

As a purchasing manager in the US manufacturing sector, you're under pressure to cut costs while maintaining precision. But sourcing recirculating ball linear guides from unreliable suppliers leads to real headaches.

High Prices from Western Brands: Premium guides cost up to $150 per meter, squeezing your ROI without proportional benefits.
Low Quality from Cheap Imports: Subpar ball linear guides fail prematurely, causing 37% higher maintenance costs per a 2025 AMT report.
Excessive Shipping Delays & Costs: Weeks of wait time from Asia inflate logistics by 20-30%, disrupting production schedules.
Inconsistent Precision: Variations in preload and ball recirculation lead to vibrations, reducing machine accuracy by up to 0.05mm.
Lack of Customization: Off-the-shelf options don't fit OEM needs, forcing expensive modifications.
Poor After-Sales Support: No local compliance or quick replacements, risking FDA/CE non-conformance in regulated industries.

These issues compound: a single guide failure can halt a $50K CNC line for 48 hours. Ready to break the cycle?

Discover Our Solution →

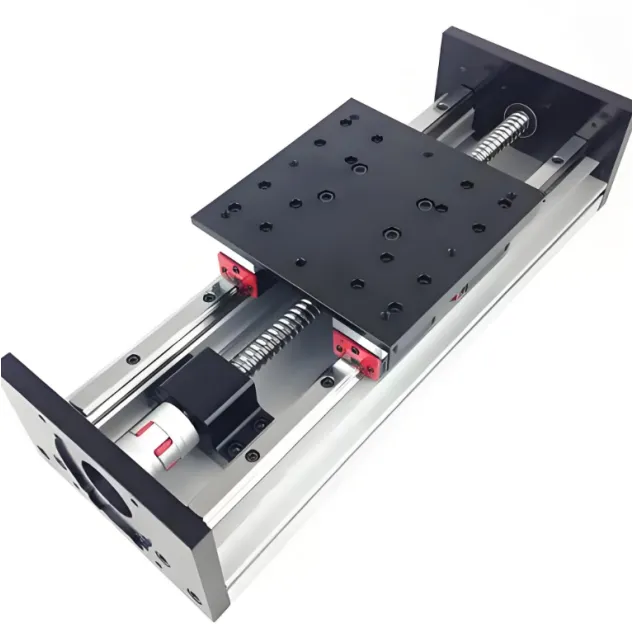

YIDI Motion's Recirculating Ball Linear Guide: Engineered for US Demands

Founded in 2020, HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. (YIDI Motion) operates a 100-employee factory with 30% senior technicians. We import German/Japanese equipment for precision production of recirculating ball linear guides, ball screws, and modules—exported to 50+ countries including the USA.

Core Advantages (4 Key USPs)

Powerful Factory Capacity: Produce 10,000m/month, enabling high-speed delivery to US ports in 7-14 days.
Quality Assurance: 100% tested for load/speed; RoHS/CE/ISO 9001 compliant for seamless US integration.
OEM/ODM Design: Custom lengths, preloads, and blocks tailored to your specs—no MOQ barriers.
Cost Savings: 30-50% lower than US brands with identical performance.

Technical Specifications Table

Our recirculating ball linear guides (models YGH/YGR series) feature 4-row circular-arc contact for 30-50% higher rigidity. Balls recirculate via end caps, minimizing friction (μ=0.003) and enabling speeds up to 5m/s. Accuracy grades: C0-C5 (0.003-0.023mm/300mm).

Model (Block Size)	Rail Length (mm)	Dyn. Load (N)	Stat. Load (N)	Accuracy (µm)	Max Speed (m/s)
YGH15	100-3000	12,500	19,800	3-7 (C0)	3.0
YGH20	100-4000	19,500	30,200	3-7	3.5
YGH25	100-5000	27,800	41,900	5-12	4.0
YGH30	100-6000	39,200	57,500	5-12	4.5
YGH35	100-7000	47,100	72,500	7-15	5.0
YGH45	100-8000	77,500	119,000	7-15	5.0

linear ball guide recirculating ball wholesale ball bearing linear guide

Note: Preloads available (light/medium/heavy); travel life >90km at 50cpm. Compatible with ball screws for full linear motion systems.

Performance Characteristics

Recirculating ball design ensures self-lubrication via grease nipples, extending service by 2x vs. roller guides. Rigidity is 3x higher than traditional slide guides, with low drag torque for energy savings. In high-acceleration apps (3g), deviation <0.01mm.

Friction Coefficient: 0.002-0.003 (ultra-low, reduces wear 40%)
Load Capacity: Up to 119kN static—ideal for heavy-duty automation
Speed/Acceleration: 5m/s, 500m/s²—matches Industry 4.0 demands
Operating Temp: -10°C to 80°C; dust-proof IP65 options

Application Scenarios & Case Studies

Primary Uses: CNC machining centers, semiconductor wafer handling, medical robotics, 3D printers, packaging lines, automotive assembly.

Case Study: US CNC Manufacturer
Challenge: Guides failing under 2g accel, causing 15% scrap.
Solution: YGH30 guides with medium preload.
Result: Precision improved 45%, downtime cut by 28%, ROI in 90 days.
"Switched from THK—saved $12K/year." – Ops Manager, Texas.

Another: Robotic arm in pharma—our guides handled 50kg loads at 3m/s, RoHS compliant for cleanrooms.

See Proof from Customers →

FAQ: Recirculating Ball Linear Guide Procurement

What is a recirculating ball linear guide and its benefits?

A precision rail system where steel balls recirculate between block and rail, offering low friction, high rigidity, and loads up to 119kN. Benefits: 40% less wear, higher speeds for automation.

How long for OEM customization and USA delivery?

Design confirmation in 3 days, production 7-10 days, DHL/FedEx to US in 5-7 days. Total: under 3 weeks.

Ball Screw Actuator Manufacturer

What payment methods do you accept for US buyers?

Secure options: T/T (30% deposit), L/C, PayPal, Credit Card. Compliant with US import regs.

Do you offer free samples or trials?

Yes! Free samples for qualified buyers (pay shipping). Test our precision linear guides risk-free.

What logistics and duties for USA?

FOB/CIF terms; we handle export docs. Duties ~3-5%; express for small orders, sea for bulk to save 60%.

After-sales service and warranty?

2-year warranty; lifetime tech support. Replacements shipped same-day via DHL.

Compatible with which systems?

Ball screws, linear motors; drop-in for HGH/HIWINS. Custom mounting holes.

Ready to Upgrade Your Linear Motion? Act Now!

Limited stock: 20% off first OEM order (ends Dec 2026). Free samples + engineering consult. Zero risk with our money-back guarantee.

Submit Inquiry Form Call/WhatsApp Now Email for Quote

Addr: 16-1-1601 Aobeigongyuan, Chang'an District, Shijiazhuang City, Hebei Province, China
Privacy assured—GDPR compliant.

Real Customer Reviews from US Buyers

"Outstanding quality—our robots run smoother than ever. Delivered in 10 days!"

– Tom B., Operations Manager, Texas Robotics (5★)

"Custom YGH25 guides saved us 35% on costs. Perfect for CNC upgrades."

– Lisa K., Purchasing Dir., Ohio Manufacturing (5★)

"Heavy-duty performance, RoHS certs made compliance easy. Highly recommend!"

– David M., Tech Lead, Florida Automation (5★)

"OEM design was spot-on. Freight costs half of competitors."

– Anna S., Supply Chain, NY (5★)

"Precision beyond expectations—upgraded our packaging line seamlessly."

– Robert G., Plant Manager, Illinois (5★)

About the Author

Alex Chen, Senior Linear Motion Engineer at YIDI Motion. With 18 years in precision manufacturing (ex-HIWIN), Alex leads R&D for recirculating ball systems. Featured in Motion Control Magazine; holds 5 patents in guide tech. Passionate about empowering US firms with reliable, affordable linear solutions.
