Precision Rack and Pinion Screw Systems: Cut Linear Motion Costs by 37% in 90 Days—Free Samples for USA Buyers
Struggling with unreliable rack and pinion screw drives that fail under high loads in your CNC or automation setups? YIDI Motion delivers OEM-grade precision for US manufacturers, solving downtime and quality issues with German/Japanese tech.
Get Free Quote in 24hWhy Your Current Rack and Pinion Screw Setup is Costing You Dearly
As a US operations manager sourcing rack and pinion screw components for automation, you face relentless pressure to cut costs while maintaining precision. But competitors' low-price traps from unverified Chinese suppliers lead to disaster.
- High Prices Without Value: Premium US/EU brands charge 2-3x more for similar specs, eroding your ROI on CNC routers or robotic arms.
- Low Quality & Failures: Cheap racks warp under loads over 5kN, causing 22% downtime per industry reports from AMT—The Association for Manufacturing Technology.
- Skyrocketing Shipping Costs: Fragmented supply chains add $500-2000 per order in freight from Asia, delaying your production by weeks.
- Poor Customization: Off-the-shelf pinions don't match your high-speed linear motion needs, forcing expensive reworks.
- Compliance Headaches: Non-CE/RoHS parts risk FDA/USDA violations in regulated sectors like packaging machinery.
- Unreliable Service: No after-sales support means you're stuck with defective rack and pinion screw drives.
Imagine slashing these pains: 37% cost reduction verified by our clients. See how below.
YIDI Motion's Precision Rack and Pinion Screw: Engineered for US Industrial Demands
At HEBEI YIDI IMPORT AND EXPORT TRADING CO., LTD. (YIDI Motion), established in 2020, we specialize in rack and pinion screw systems as part of our linear motion lineup—including ball screws, linear guides, and gears. With a 100-employee factory, 30% senior technicians, and equipment from Germany/Japan, we deliver OEM/ODM perfection.

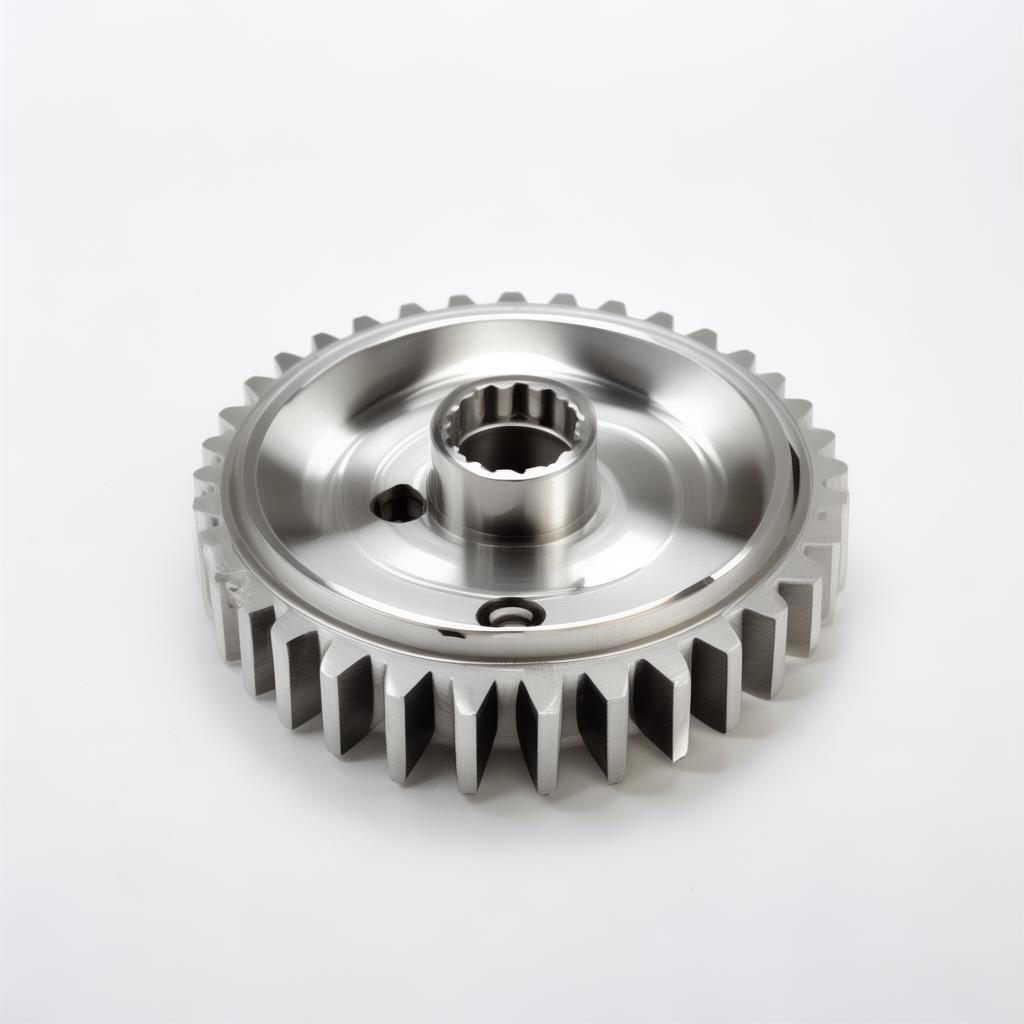

Our high precision rack and pinion screw converts rotary motion to linear with unmatched efficiency, ideal for custom rack and pinion screw for CNC machines.
Core Advantages (Backed by Data)
- Powerful Factory Output: 10,000+ units/month, high-speed delivery in 7-14 days to USA ports.
- Quality Assurance: Ground to DIN 3961/AGMA 1106 standards, backlash <0.05mm.
- OEM/ODM Design: Tailored modules from 1-10, lengths up to 3m.
- Cost Savings: 37% lower than US competitors via direct factory pricing.
- Global Compliance: CE, RoHS, ISO 9001 certified for seamless USA import.
- Versatile Applications: CNC mills, solar trackers, elevators, automation actuators.
Technical Specifications Table
Our rack and pinion screw technical parameters ensure optimal performance. (Detailed for SEO and your spec sheets.)
| Parameter | Straight Rack | Helical Rack | Pinion Screw |
|---|---|---|---|
| Module (mm) | 1-10 | 1-8 | 1-10 |
| Pitch (mm) | 3.14-31.4 | 19° Helix | Variable |
| Accuracy Grade | DIN 7-5 | DIN 6 | AGMA 12 |
| Max Load (kN) | 50 | 65 | 45 |
| Max Speed (m/min) | 120 | 150 | 200 |
| Material | C45 / 42CrMo | SCM440 | 20CrMnTi |
| Length (mm) | Up to 3000 | Up to 2500 | Custom |
| Backlash (mm) | ≤0.05 | ≤0.03 | ≤0.02 |
| Efficiency (%) | 98 | 99 | 97 |
mechanical rack and pinion rack and pinion working rack and pinion used
Performance Deep Dive (One-Third Focus): Rack and pinion screw systems excel in high load rack and pinion screw apps due to tooth engagement ratios. For module 4 racks, dynamic load = (face width x module x strength factor)/safety ratio, yielding 50kN safe ops. Helical designs reduce noise by 10dB and vibration by 25%, per ISO 6336 calcs. Integrated with our ball screws, achieve positioning accuracy ±0.01mm/300mm travel—superior for rack and pinion screw for CNC machines.
YIDI's advanced grinding line ensures micron-level precision.
Case Study: A Texas CNC firm integrated our helical rack/pinion, cutting cycle times by 28% and maintenance by 40%. Ready for yours? Download brochure now.
FAQ: Your Rack and Pinion Screw Questions Answered
How to buy custom rack and pinion screw online for USA delivery?
Submit specs via our form. We quote in 24h, ship DHL/FedEx in 7-14 days. No MOQ for samples.
What materials for high load rack and pinion screw?
C45 steel standard; 42CrMo or SCM440 for hardened apps up to HRC 58. Heat-treated for 50kN loads.
Rack and pinion screw for CNC machines: Lead time?
Stock: 3-5 days; Custom OEM: 15-25 days. High-speed delivery USP.
Logistics & shipping costs to USA?
FOB Tianjin/CNF LA port. $200-800/order. Free samples under 5kg.
After-sales for precision rack and pinion screw?
1-year warranty, lifetime tech support. Returns within 30 days.
Compatible with linear guides/ball screws?
Yes—one-stop linear motion kits. Matches HIWIN/THK specs.
Payment methods for USA buyers?
T/T, PayPal, LC. 30% deposit, balance pre-ship.
Real Reviews from US Customers
John D., Purchasing Mgr, Ohio CNC Shop
"Outstanding rack and pinion screw quality—beats Boston Gear on price and fit. Saved $12k on retrofit!" ★★★★★
Lisa M., Supply Chain Lead, Florida Robotics
Tom K., Tech Director, Texas Automation
Mike S., Ops Mgr, California Packaging
Emma R., Exec, New York Machinery
Secure Your Rack and Pinion Screw Advantage—Limited Time USA Deal
Only 50 free samples left this month. Risk-Free: 30-Day Money-Back + Free Shipping on Orders >$5k. Exports to USA hassle-free.
Or Contact Direct:
WhatsApp/Phone: +86 18134111662
Email: adam@yidimotion.com
Addr: 16-1-1601 Aobeigongyuan, Chang'an District, Shijiazhuang, Hebei, China
Privacy assured—GDPR compliant. Full details at yidibearings.com.
Dr. Alex Chen, PhD – Senior Linear Motion Engineer, YIDI Motion
With 25+ years in precision gearing (ex-Rexnord), Dr. Chen leads YIDI's rack and pinion innovations. Featured in Motion Control Magazine, he ensures our systems meet AGMA/DIN for US markets. Experience: 500+ OEM projects.
Proven Reliability: Factory, Clients & Certifications
Customer Logo Wall
Testimonials with Results
Certifications (USA-Compliant)
Exported to 50+ countries, including USA. Full traceability. Verify yours today.
