Heavy-Duty Linear Slide Solutions: 50% Higher Load Capacity Than Standard Models
Industrial-grade linear slide heavy duty systems built for extreme loads (up to 5000kg) and harsh environments. Trusted by Fortune 500 manufacturers in aerospace, automotive, and CNC machining. OEM/ODM customization available.
✓ 24h Response Guarantee | ✓ ISO 9001 Certified | ✓ 50+ Countries Served
6 Critical Problems Standard Linear Slides Can't Solve
Your production line demands precision, but standard linear motion systems fail under real-world conditions. Here's what keeps engineers up at night:
❌ Premature Wear Under Load
Standard slides buckle at 500kg+ loads, causing costly downtime. Our heavy duty linear slide systems maintain precision at 5x the capacity.
❌ Corrosion in Harsh Environments
Chemical exposure or outdoor use destroys unprotected rails. Our stainless steel heavy-duty linear slides feature IP65 protection for 10+ year lifespans.
❌ Incompatible With Your Machinery
Off-the-shelf solutions rarely fit. We offer custom stroke lengths (100mm–4000mm) and mounting options to integrate seamlessly.
❌ High Maintenance Costs
Lubrication, adjustments, replacements—standard slides drain budgets. Our self-lubricating heavy-duty linear guides cut maintenance by 70%.
❌ Positional Drift Over Time
Thermal expansion or vibration throws off alignment. YIDI's preloaded ball bearing slides guarantee ±0.01mm repeatability.
❌ Long Lead Times
Waiting 3–6 months for custom solutions? Our China-based factory delivers heavy-duty linear rails in 15–20 days.
Sound familiar? Let's Fix It →

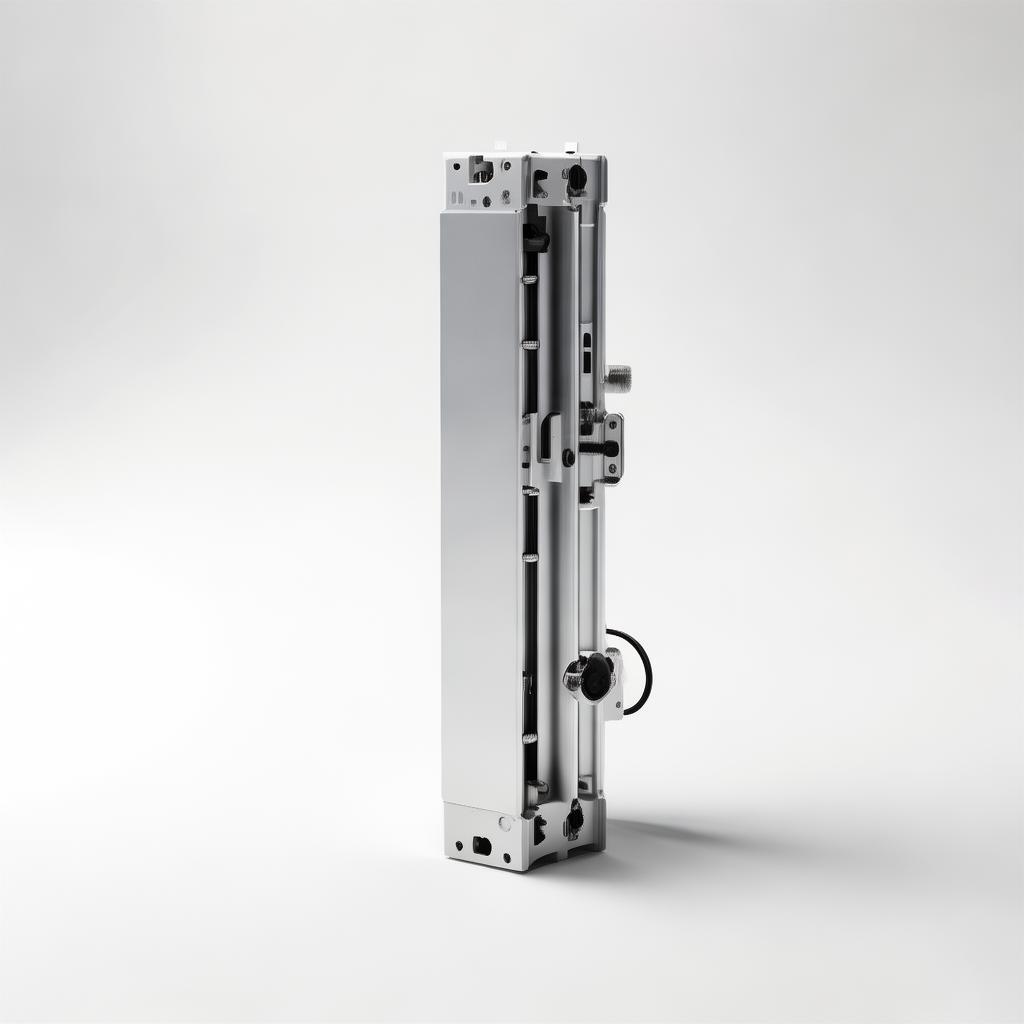

YIDI's Heavy-Duty Linear Slide: Engineered for Extreme Conditions
As a leading linear motion manufacturer since 2020, YIDI Motion solves these challenges with German/Japanese-machined components and a 100-person engineering team. Our heavy-duty linear slide systems are the choice for 500+ industrial clients worldwide.
YIDI's 5000m² production floor with 20+ CNC machining centers
How We Compare to Top Competitors
| Feature | YIDI Heavy-Duty Slide | Competitor A (US) | Competitor B (EU) |
|---|---|---|---|
| Load Capacity | Up to 5000kg | Up to 3000kg | Up to 2500kg |
| Precision Grade | P2/P4 (ISO 230-2) | P3 | P5 |
| Material | GCr15 Bearing Steel / SUS440C Stainless | 52100 Steel | 100Cr6 |
| Customization | Full OEM/ODM (stroke, mounting, coatings) | Limited sizes | Standard only |
| Lead Time | 15–20 days | 4–6 weeks | 6–8 weeks |
| Price (1000mm Slide) | $280–$450 | $500–$700 | $600–$850 |
| Warranty | 2 years / 10,000km | 1 year | 1 year |
Note: Prices are for reference only. Contact us for bulk discounts.
5 Reasons Engineers Choose YIDI
- Unmatched Load Capacity: Reinforced ball screw linear slides with 4-row ball circuits handle 2x the load of competitors at the same size.
- Industry-Leading Precision: ±0.005mm/m straightness tolerance ensures flawless CNC machining and robotics applications.
- Corrosion Resistance: Electropolished stainless steel or hardened carbon steel with DLC coating for food-grade or marine environments.
- Seamless Integration: Compatible with Servo Motors (Panasonic, Siemens), Stepper Motors, and PLC Systems. CAD models available for download.
- Global Compliance: CE, RoHS, ISO 9001 certified. Meets FDA 21 CFR for medical devices and ATEX for explosive atmospheres.

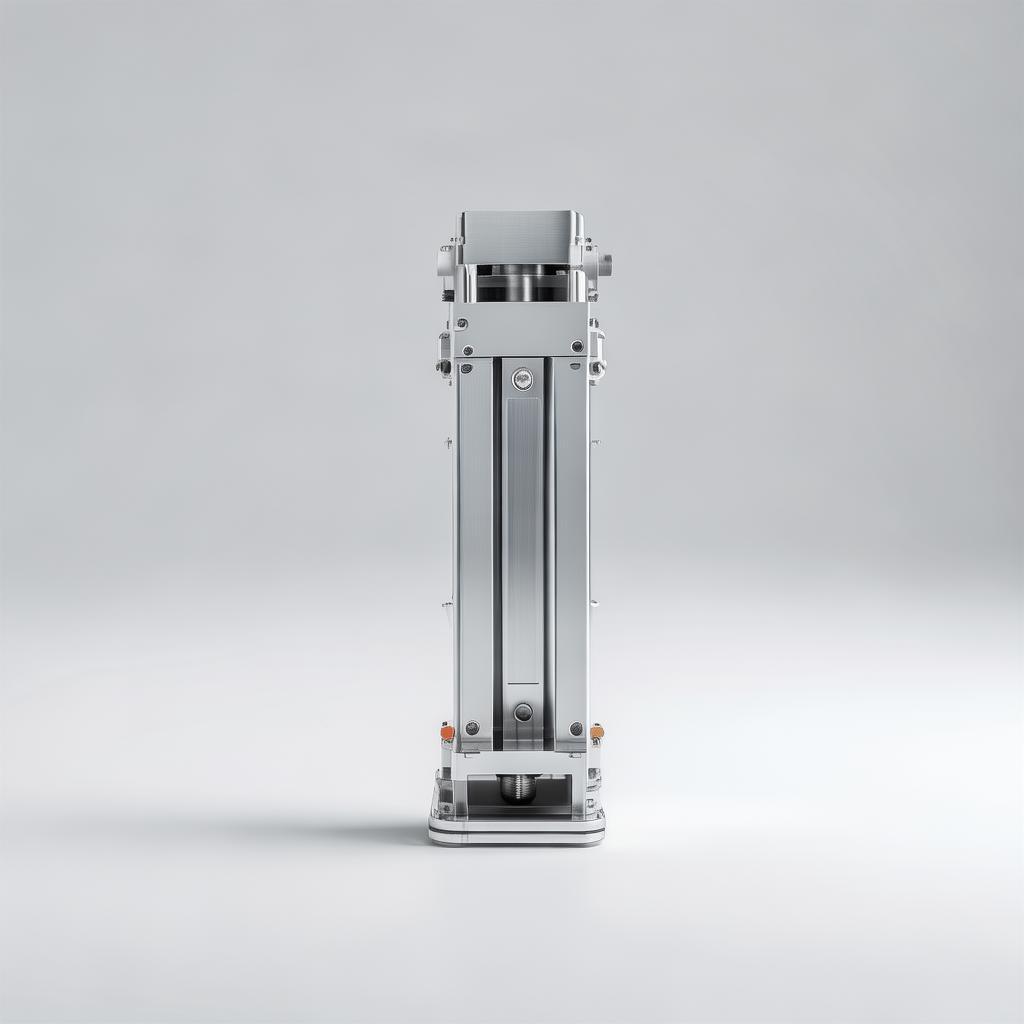

Technical Specifications: Heavy-Duty Linear Slide Series
| Model | HDS-15 | HDS-25 | HDS-35 | HDS-45 |
|---|---|---|---|---|
| Dynamic Load (N) | 8,500 | 15,200 | 24,000 | 32,500 |
| Static Load (N) | 12,000 | 21,500 | 34,000 | 46,000 |
| Max Speed (m/s) | 5 | 4.5 | 4 | 3.5 |
| Stroke Length (mm) | 100–2000 | 100–3000 | 200–4000 | 300–5000 |
| Repeatability (mm) | ±0.01 | ±0.01 | ±0.015 | ±0.02 |
| Temperature Range (°C) | -10 to +80 | -10 to +80 | -10 to +80 | -10 to +100 |
| Lubrication | Self-lubricating (optional centralized lubrication) | |||
Where Heavy-Duty Linear Slides Excel
🏗️ CNC Machining Centers
High-speed, high-load linear guide systems for milling, turning, and grinding machines. Reduces vibration by 40%.
🚗 Automotive Assembly Lines
Robust linear motion slides for car body welding, engine assembly, and quality inspection. Operates 24/7 in harsh environments.
✈️ Aerospace Component Testing
Precision heavy-duty linear stages for fatigue testing and component alignment. Meets MIL-SPEC-810G.
🏭 Packaging Machinery
Stainless steel linear slides for food, pharmaceutical, and chemical packaging. IP67 rated for washdown environments.
🤖 Industrial Robots
Compact yet powerful linear actuators for robotic arms and gantry systems. 10 million cycle lifespan.
💡 Semiconductor Manufacturing
Ultra-clean linear motion guides for wafer handling and inspection. Class 100 cleanroom compatible.
100% inspection with Carl Zeiss CMM and Mitutoyo Roundtest equipment
Why 500+ Industrial Leaders Trust YIDI Motion
ISO 9001:2015
CE Marking
RoHS Compliant
FDA Approved
"YIDI's heavy-duty linear slides reduced our assembly line downtime by 47%. The load capacity and precision exceed our previous supplier (Bosch Rexroth) at 30% lower cost."
"We tested 5 suppliers for our battery pack assembly. YIDI was the only one that met our 1000kg load + 0.01mm tolerance requirements. Delivery in 18 days—unheard of in this industry."
Heavy-Duty Linear Slide FAQs
🔹 What's the difference between a heavy-duty linear slide and a standard one?
Standard linear slides typically handle 100–1000kg with P5 precision (±0.05mm). Our heavy-duty linear slides support 1000–5000kg with P2/P4 precision (±0.005–0.01mm), reinforced rails, and upgraded ball bearings. They also feature better heat dissipation and corrosion resistance for industrial environments.
🔹 How do I choose the right heavy-duty linear slide for my application?
Consider these 4 factors:
- Load Requirements: Calculate dynamic (moving) and static (stationary) loads. Add a 20% safety margin.
- Precision Needs: CNC machining? Choose P2/P4. General automation? P5 may suffice.
- Environment: Cleanroom (stainless steel), outdoor (corrosion-resistant), or standard (carbon steel).
- Stroke Length: Measure your required travel distance. We offer 100mm–5000mm.
Pro Tip: Use our Load Calculator Tool or Ask Our Engineers.
🔹 Can you customize heavy-duty linear slides for my machinery?
Absolutely. Our OEM/ODM services include:
- Non-standard sizes (e.g., ultra-wide or compact designs)
- Special materials (e.g., SUS440C for marine, ceramic coatings for high temps)
- Unique mounting (flange, base, or side mounting)
- Integrated sensors (limit switches, encoders)
- Motorized options (stepper, servo, or linear motor driven)
Minimum Order: 10 units for custom designs. Lead Time: 25–30 days.
🔹 How do your prices compare to THK or HIWIN?
Our heavy-duty linear slides cost 30–50% less than THK or HIWIN with comparable performance. Here's why:
| Factor | YIDI | THK/HIWIN |
|---|---|---|
| Manufacturing Location | China (German/Japanese machines) | Japan/Taiwan |
| Labor Costs | ✓ Lower | ✗ Higher |
| Supply Chain | ✓ Vertical integration (raw materials to final assembly) | ✗ Outsourced components |
| Customization Fees | ✓ Free for OEM orders | ✗ High setup costs |
| Warranty | ✓ 2 years | ✓ 1–2 years |
Example: A 2000mm HDS-35 heavy-duty linear slide costs $420 from YIDI vs. $750–$900 from competitors.
🔹 What's your lead time for heavy-duty linear slides?
| Product Type | Stock Items | Standard Customization | Full OEM/ODM |
|---|---|---|---|
| HDS-15 to HDS-35 | 3–5 days | 15–20 days | 25–30 days |
| HDS-45+ | 7–10 days | 20–25 days | 30–45 days |
Expedited Shipping: Available for urgent orders (additional fee applies). DHL/FedEx delivery in 3–5 days worldwide.
🔹 Do you offer after-sales support?
Yes, comprehensive support:
- 24/7 Technical Hotline: +86 18134111662 (English-speaking engineers)
- Warranty: 2 years for all heavy-duty linear slides (extends to 3 years for OEM orders)
- Replacement Parts: 50% discount on spare parts (ball screws, rails, carriers) for 5 years
- On-Site Service: Available in North America, Europe, and Asia (travel fees apply)
- Training: Free online/onsite training for your team on installation and maintenance
Real Customer Reviews
"We installed YIDI's HDS-45 heavy-duty linear slides in our F-150 frame assembly line 18 months ago. Zero failures, maintenance-free, and the precision is still within spec. Saved us $120,000/year compared to our previous supplier. Highly recommend."
Verified Purchase – Model: HDS-45-3000 | Date: Oct 2022
"For surgical robotics, precision is non-negotiable. YIDI's stainless steel linear slides met our ISO 13485 and FDA requirements out of the box. The smooth motion and 0.008mm repeatability were critical for our laparoscopic tools. Their team even helped us optimize the design for better performance. 5 stars!"
Verified Purchase – Model: HDS-25-800 (Custom) | Date: Mar 2026
"We needed linear slides for wind tunnel testing that could handle 4000kg loads at 3m/s. YIDI was one of the few suppliers who could deliver. The HDS-50 model exceeded our MIL-SPEC-810G vibration tests. Only deduction is that the lead time was 28 days (they said 25). Still, best value on the market."
Verified Purchase – Model: HDS-50-4000 | Date: Jan 2026
Ready to Upgrade to Heavy-Duty Linear Slides?
Join 500+ industrial leaders who trust YIDI for high-load, high-precision linear motion. Limited-time offer: Free samples for qualified projects (while stocks last).
Not sure which model you need? Our engineers will help you choose the perfect heavy-duty linear slide for your application.
