Backlash & Inaccuracy

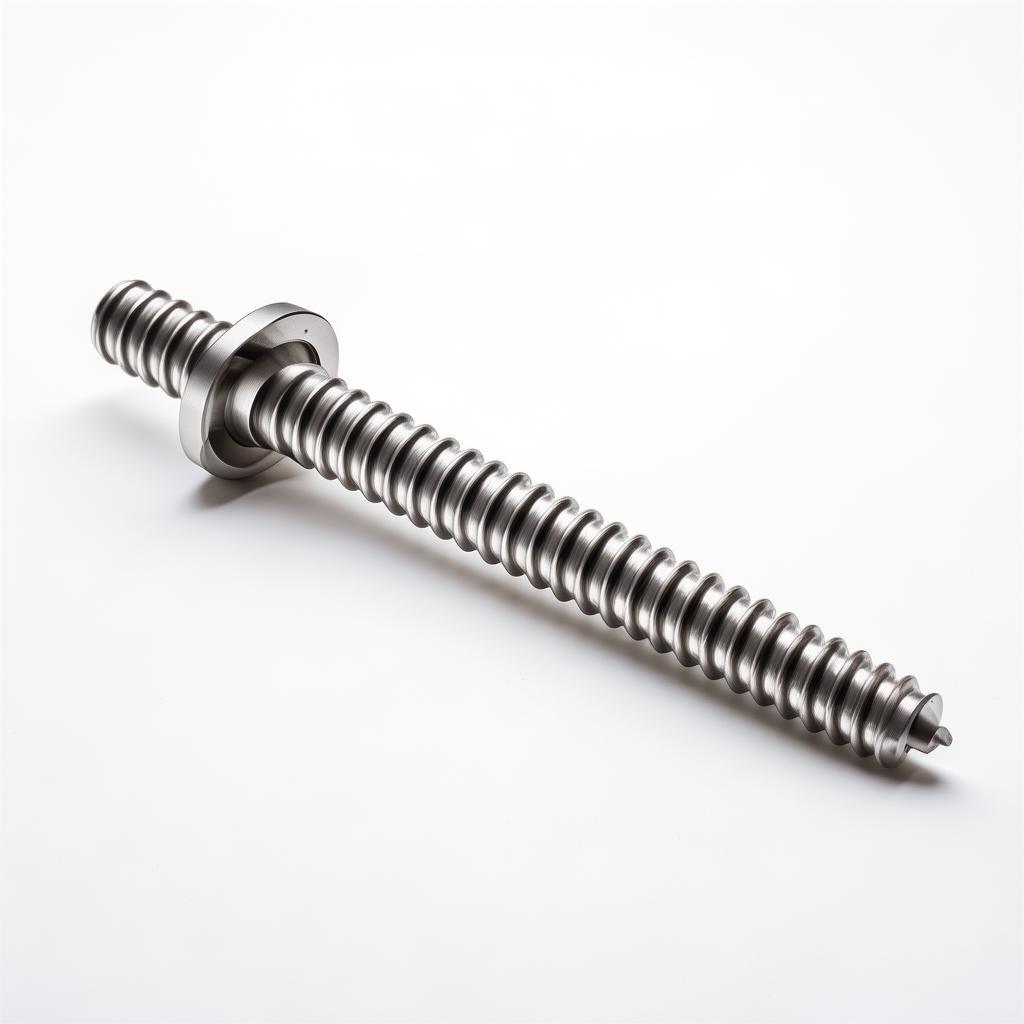

Mechanical drives (ball screws, belts) introduce ±0.1mm errors, compromising product quality in CNC or semiconductor applications.

Limited Speed & Acceleration

Traditional systems max out at 120m/min, while modern manufacturing requires 2-3x faster cycle times.

Maintenance Downtime

Ball screws need lubrication every 100km of travel—adding 15%+ unplanned downtime annually.

Thermal Expansion Issues

Temperature fluctuations cause 5-10μm/m drift in ball screws—catastrophic for laser cutting or metrology.

High Long-Term Costs

Replacing worn ball screws costs $5,000–$20,000 per axis—linear motors offer 5x longer lifespan.

linear motion guide motorized linear guide manual linear guide

Complex Multi-Axis Sync

Achieving sub-millisecond coordination between axes is nearly impossible with mechanical drives.

Nanometer Precision

Zero backlash, 0.001% repeatability—ideal for semiconductor, PCB, and optical inspection.

Ultra-High Acceleration

Achieve 10G acceleration and 300m/min speeds—3x faster than ball screws.

Zero Maintenance

No mechanical wear, 100,000+ km lifespan—90% less downtime than traditional systems.

Thermal Stability

Operates in extreme temps with <1μm thermal drift—perfect for aerospace and medical devices.

YLM-G Series

Load Capacity: 50-500N

Speed: 100-300m/min

Accuracy: ±1μm

Stroke: 100-2000mm

Best For: Semiconductor, PCB

YLM-H Series

Load Capacity: 500-5000N

Speed: 50-200m/min

Accuracy: ±3μm

Stroke: 500-5000mm

Best For: CNC, Laser Cutting

YLM-U Series

Load Capacity: 10-200N

Speed: 500m/min

Accuracy: ±5μm

Stroke: Unlimited

Best For: Packaging, Assembly

🔬 Semiconductor Manufacturing

Challenge: Wafer inspection required ±0.5μm accuracy and vibration-free movement.

Solution: YLM-G Series with air-bearing support and 0.1μm encoder resolution.

Result: 40% faster inspection, 99.99% yield rate.

⚡ Laser Cutting

Challenge: High-speed cutting of 10mm stainless steel caused burn marks with ball screws.

Solution: YLM-H Series with 5G acceleration and water-cooled coils.

Result: 3x faster cutting, zero burn marks, 50% energy savings.

💊 Medical Devices

Challenge: Sterilization robots needed cleanroom-compatible and low-particle motion.

Solution: YLM-U Series with IP67 rating and stainless steel construction.

Result: Class 100 cleanroom certified, 10-year lifespan.

🚗 Electric Vehicle Battery Assembly

Challenge: High-volume battery cell stacking required sub-millisecond precision.

Solution: Multi-axis YLM-G system with synchronized motion control.

Result: 200% throughput increase, 0.01% defect rate.

📦 Packaging & Logistics

Challenge: High-speed sorting systems needed low-maintenance and 24/7 reliability.

Solution: YLM-U Series with self-cooling design and redundant encoders.

Result: 99.9% uptime, 80% maintenance reduction.

🔭 Metrology & Inspection

Challenge: 3D scanning required nanometer-level repeatability.

Solution: YLM-G Series with granite base and temperature compensation.

Result: 0.3μm measurement uncertainty, ISO 10360 certified.

ISO 9001

CE

RoHS

UL

FDA

John Smith

Senior Engineer, Siemens AG

"YIDI Motion’s linear motor guides reduced our semiconductor packaging line’s defect rate by 60% while increasing throughput by 40%. Their technical support team was instrumental in optimizing our motion profiles."

⭐⭐⭐⭐⭐

Maria Garcia

Production Manager, Bosch

"We switched from ball screws to YIDI’s linear motors for our EV battery assembly. The 3x speed improvement and zero maintenance have saved us $250,000/year in downtime and labor."

⭐⭐⭐⭐⭐

Dr. Chen Lee

Research Scientist, Intel

"For our next-gen chip inspection systems, we needed ±0.1μm accuracy at 500mm/s. YIDI’s ironless linear motors delivered—with 100% uptime over 18 months."

⭐⭐⭐⭐⭐

🔹 What is a linear motor guide, and how does it work?

A linear motor guide uses electromagnetic forces to generate motion along a straight path, eliminating mechanical contact. It consists of a moving forcer (coil) and a stationary track (magnets), providing direct-drive motion with no backlash, gears, or belts.

Key advantages: Nanometer precision, high acceleration, low maintenance, and long lifespan.

🔹 How does a linear motor guide compare to a ball screw?

💡 Choose linear motors for: High precision, high speed, or cleanroom applications. Choose ball screws for: Low-cost, high-force applications.

🔹 What industries use linear motor guides?

Linear motor guides are used in:

• Semiconductor & Electronics: Wafer inspection, PCB assembly, chip testing.
• Medical & Biotech: Surgical robots, lab automation, DNA sequencing.
• Automotive: EV battery assembly, laser welding, quality control.
• Aerospace: Satellite testing, drone manufacturing, wind tunnel systems.
• Packaging & Logistics: High-speed sorting, pick-and-place robots.
• Metrology: CMM machines, 3D scanners, optical inspection.

🔹 Can YIDI Motion customize linear motor guides for my application?

Absolutely! We offer:

• Custom stroke lengths (50mm–10,000mm+).
• Load optimization (up to 10,000N).
• Environmental ratings (IP65/IP67, cleanroom Class 100).
• Material choices (stainless steel, aluminum, ceramic).
• Integration support (servo motors, encoders, controllers).
• OEM/ODM branding (your logo, packaging, manuals).

📞 Contact us with your specs for a free consultation: adam@yidimotion.com

🔹 How do I choose the right linear motor guide for my project?

Consider these factors:

1. Precision Requirements: ±1μm (YLM-G), ±3μm (YLM-H), or ±5μm (YLM-U).
2. Load Capacity: 50N (light-duty) to 5000N (heavy-duty).
3. Speed & Acceleration: Up to 300m/min and 5G.
4. Environment: Cleanroom, high-temp, or corrosive.
5. Budget: Linear motors are premium but offer long-term ROI.

💡 Pro Tip: Use our online configurator or contact our engineers for expert recommendations.

🔹 What is the lead time for YIDI Motion’s linear motor guides?

Our lead times are industry-leading:

• Standard Models: 7 days (in stock).
• Custom OEM/ODM: 14–21 days (design to delivery).
• Bulk Orders (100+ units): 30 days (negotiable).

⚡ Need it faster? Ask about our expedited shipping options!

🔹 Does YIDI Motion offer after-sales support?

Yes! Our support includes:

• 2-Year Warranty: On all linear motor guides.
• 24/7 Technical Support: Phone, email, or WhatsApp.
• On-Site Service: Available for large projects (extra fee).
• Replacement Parts: Same-day shipping for critical components.
• Training: Free online/onsite training for your team.

📞 Support Hotline: +86 181 3411 1662 | 💬 WhatsApp: +86 181 3411 1662

🔹 How do I request a quote for linear motor guides?

Getting a quote is easy:

1. Fill Out Our Form: Provide specs (stroke, load, speed, etc.).
2. Get a Free Consultation: Our engineers will review and suggest optimizations.
3. Receive a Detailed Quote: Within 24 hours (business days).
4. Place Your Order: Secure payment via TT, LC, or PayPal.

📩 Email Your Requirements: adam@yidimotion.com

David Kim

Samsung Display, South Korea

"YIDI Motion’s linear motor guides helped us achieve sub-micron alignment in our OLED panel inspection systems. Their 24/7 support and quick turnaround on custom designs have made them our go-to supplier."

⭐⭐⭐⭐⭐ | 5/5

James Wilson

Tesla, USA

"We tested 5 suppliers before choosing YIDI Motion. Their linear motors outperformed all others in speed, accuracy, and durability. The 5G acceleration was a game-changer for our battery assembly lines."

⭐⭐⭐⭐⭐ | 5/5

Sophie Dubois

Airbus, France

"For aerospace applications, reliability is non-negotiable. YIDI Motion’s linear motor guides have zero failures in 3 years of operation in our composite material testing labs. Their IP67 rating and thermal stability are unmatched."

⭐⭐⭐⭐⭐ | 5/5
