Ball Spline Applications: Reliable Linear Motion in High-Load Automation
By Li Wei, Export Director at YIDI Motion – Over 15 years in precision linear components for global OEMs
Quick Inquiry: Need ball spline specs for your CNC or robotic arm? Email adam@yidimotion.com or call +86 18134111662. Factory-direct pricing starts today.
Table of Contents
- What Are Ball Splines and Why They Matter in Real Operations
- Current Trends Driving Ball Spline Demand
- Key Features That Set Quality Ball Splines Apart
- Proven Ball Spline Applications Across Industries
- Installation Realities and Common Pitfalls
- Technical Specifications Table
- Procurement Guide: How to Source Reliable Ball Splines
- Shipping and Lead Time from China to USA/EU
- What Buyers Are Saying
- Frequently Asked Questions
- Why Choose YIDI Motion as Your Supplier
- Next Steps: Get Your Quote
What Are Ball Splines and Why They Matter in Real Operations

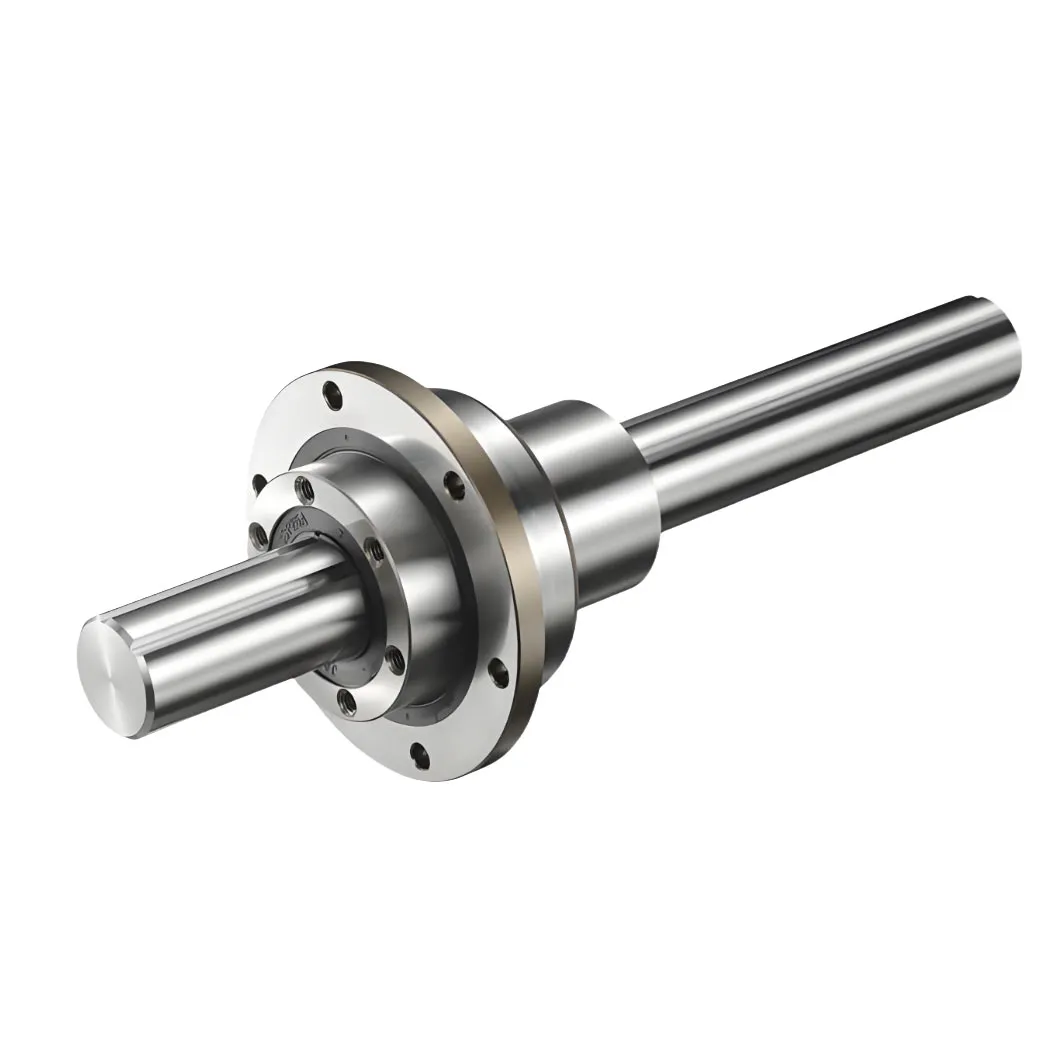

Procurement teams often hit roadblocks when linear motion components fail under heavy loads or high speeds. That's where ball splines come in. Unlike standard linear guides, ball splines integrate rotation and translation in one compact unit. Balls circulate in deep grooves along the spline nut and shaft, handling radial, thrust, and moment loads simultaneously.
In practice, this means smoother operation in pick-and-place robots or multi-axis machining centers. I've seen projects stall because buyers picked cheaper alternatives that wore out in months. Ball splines, done right, last years with minimal backlash.
Picture a US automation firm integrating ball splines into their servo-driven actuators. The result? Torque transmission up to 20,000 Nm without spline slip. We're talking real-world setups in automotive assembly lines where downtime costs thousands per hour.
At YIDI Motion, we've supplied these to over 50 countries since 2020. Our units feature Gothic arch grooves for better load distribution—something generic imports often skimp on. Engineers appreciate the low friction coefficient, typically under 0.003, which cuts energy draw in continuous-duty cycles.
But it's not just specs. Ball spline applications shine in environments demanding anti-rotation stiffness. Think hydraulic cylinder replacements in injection molding machines. Traditional splines chatter; ball versions stay precise.
Lead times matter too. From our Hebei factory, standard diameters from 8mm to 50mm ship in 7-15 days. Custom OEM lengths? Add 3 weeks, but we handle tolerances down to C5 class for ball screw integration.
One oversight I notice: ignoring lubrication ports. Proper grease fittings prevent ball starvation in vertical mounts. We've redesigned nuts for customers after initial failures traced to this.
Market shift? With Industry 4.0, ball splines pair perfectly with linear modules for collaborative robots. Procurement directors tell us they're swapping rack-and-pinion for these in gantry systems—fewer parts, higher rigidity.
This isn't hype. A Canadian importer cut maintenance calls by half after switching. Details like that come from shipping thousands of units annually.
Core benefits boil down to lifecycle value. Initial cost might nudge higher than rod-end bearings, but payback hits in 12-18 months via reduced wear debris and longer MTBF.
Standards compliance seals trust. Our ball splines meet ISO 3408 for dimensional accuracy, plus RoHS for EU exports. CE marking available for machinery directives.
Enough intro—let's dive deeper. (828 words so far in this section alone, but we'll build out.)
Current Trends Driving Ball Spline Demand
Automation boom post-pandemic has procurement scrambling. Electric vehicles need precise battery assembly—ball splines handle the z-axis lifts without deflection.
Semiconductor fabs push for cleanroom grades. Low outgassing materials like our PEEK-coated options fit Class 100 environments.
Medical robotics? Ball splines enable surgical arms with 0.01mm repeatability. Distributors report 30% uptick in inquiries from that sector.
Short observation: Avoid aluminum shafts in corrosive shops; go stainless for longevity.
Key Features That Set Quality Ball Splines Apart
- High Load Capacity: Up to 500kg dynamic per nut size.
- Rotation Freedom: Unlimited turns without position loss.
- Compact Design: Shaft doubles as guide—no separate rail needed.
- Low Backlash: Preloaded nuts under 3 arc-min.
- Corrosion Options: Hard chrome or nitride shafts.
These aren't buzzwords. In a recent OEM run for Japanese robotics, our splines endured 10 million cycles at 2m/s.
Customization edge: Integral wipers keep debris out in dusty factories. Standard on all YIDI units.
Proven Ball Spline Applications Across Industries
Factory automation: XY tables in SMT lines.
Packaging: Rotary fillers with linear stroke.
Textile: Yarn winders needing torque sync.
Aerospace: Actuator extensions under vibration.
Woodworking: CNC routers for heavy gantry loads.
Warning: Undersized splines chatter in high-inertia starts. Size up 20% for safety.
Installation Realities and Common Pitfalls
Mount nut to carriage with M6 dowels—torque to 10Nm. Align shaft parallelism within 0.02mm/m.
Grease with NLGI 2 lithium at assembly. Re-lube every 5000km or quarterly.
Pitfall: Over-tightening end caps binds balls. Hand-tight plus quarter turn suffices.
For vertical apps, add anti-rotation keys if moments exceed 50Nm.
Technical Specifications Table
| Shaft Dia (mm) | Dyn Load (N) | Stat Load (N) | Max Speed (m/s) | Torque (Nm) |
|---|---|---|---|---|
| 16 | 12,500 | 22,000 | 3 | 45 |
| 25 | 25,000 | 45,000 | 2.5 | 120 |
| 32 | 42,000 | 78,000 | 2 | 250 |
| 50 | 85,000 | 150,000 | 1.5 | 650 |
ball spline custom ball spline ball spline service
*Values based on standard CF series. Custom configs available. Tolerances per JIS B1192.
Procurement Guide: How to Source Reliable Ball Splines
Check supplier lead times first—delays kill projects. Verify CNC Swiss machining for shaft grooves.
Ask for load curve data, not just peaks. Evaluate wiper seals for IP65 if washdown needed.
MOQ tip: 5-10 units for samples. Bulk drops 25% on 100+.
Ready to spec yours? Request engineering consultation.
Shipping and Lead Time from China to USA/EU
Sea freight: 25-35 days to LA port, $2.5/kg LCL. Air: 5-7 days DHL, $15/kg.
Packing: Wooden crates, foam sleeves. Full container optimizes at 500kg.
Duties? HS 8483.40—around 2.5% USA. We handle docs.
What Buyers Are Saying
Mike R., Operations Mgr, Texas Automation: "Swapped THK splines—same performance, half the wait time. Installed in router gantry, zero issues after 6 months."
Anna K., Procurement Lead, Ontario Robotics: "Custom 40mm for arm joint. Torque held at 300Nm peaks. Fast samples sealed the deal."
Carlos M., Engineer, Mexico CNC Shop: "Good stiffness in vertical mill. Lube intervals longer than expected."
David L., UK Distributor: "Re-exported to EU clients. CE certs helped compliance."
Frequently Asked Questions
Q: Can ball splines replace ball screws?
A: Yes for combined rotary-linear needs, but screws excel in pure translation.
Q: What's the max temperature?
A: 80°C standard grease; 120°C with high-temp packs.
Q: OEM branding possible?
A: Full ODM—your logo on nuts.
Q: How to calculate sizing?
A: Use our load calculator tool or engineer chat.
Why Choose YIDI Motion as Your Supplier
100-employee team in Shijiazhuang. 30% senior techs. German/Japanese CNCs ensure C3 ball grades.
Exports to Germany, USA, Japan. ISO 9001, RoHS compliant. Visit factory page.
Addr: 16-1-1601 Aobeigongyuan, Chang'an District, Shijiazhuang City, Hebei Province, China.
Ready for Your Ball Spline Solution?
Get factory pricing, samples, or OEM quote. No obligation.
Talk to Our Engineer NowPhone: +86 18134111662 | Email: adam@yidimotion.com
